UBC Macleod Building in Minecraft

Published 2019-07-27

7 min read

#Minecraft #Survival #Architecture #Ubc

Over the last few weeks I’ve been trying to build the Macleod Building in survival Minecraft. After I heard the rumors about the demolishing of the Macleod building in the future, I thought it would be nice to keep a personal copy of it in my Minecraft world. To prolong the longevity of the build, I’ve limited myself to having no third-party mods except for server-side plugins, vanilla Minecraft data-packs, or client-only mods such as shader mods.

This is my first time trying to build something real 1:1 in Minecraft. Constraints include: limited block types in survival mode and every block is 1x1x1 in meters. This creates problems because I would need to round real life measurements into nearest meter; e.g. A hallway that is 1.3 meters wide would be too narrow if it was 1 block wide in Minecraft, but too wide if it’s two blocks wide. For ceiling heights and wall thicknesses, I followed xRILLIANx’s Minecraft Architectural Standards 1.

Planning and Surveying

Starting a large project is hard but luckily the ECE website generously provided the floorplan for each floor 2.

...

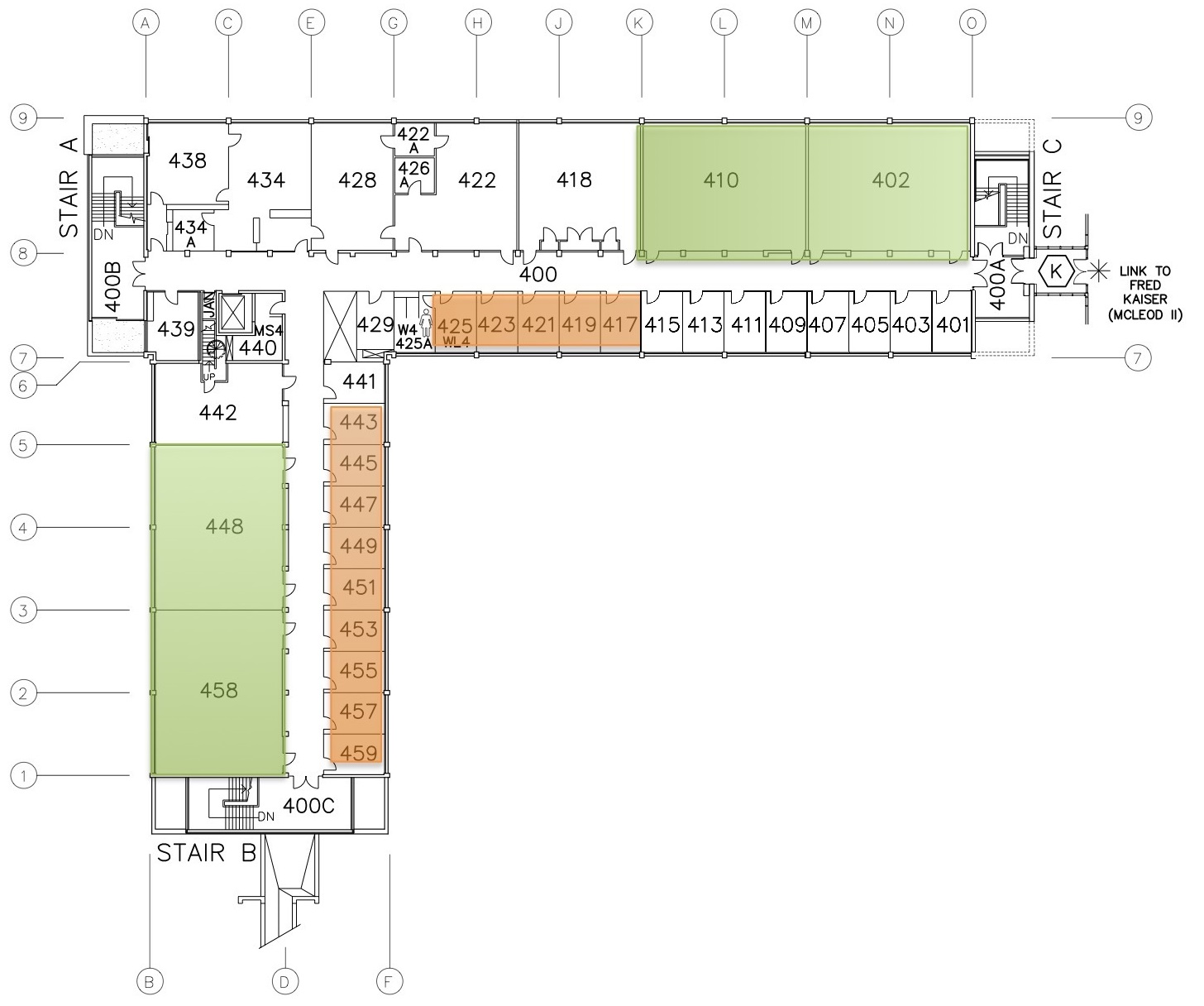

The floorplan for 4th floor Macleod

Notice that there is a column that separated each set of window panes (marked by bubbles A-O and 1-9). The distance between the columns are consistent and thus became the reference point / grid system for the rest of the build. All the measurements are verified relatively to this distance.

Measurements

One big problem is that none of the floor plans provided from the website included a scale nor dimensioning. So I went to Macleod building in real life and took a few measurements. I used built-in AR Measure app and it works pretty well.

...
The length between one exterior column to another: ~6 blocks + 1 block for the column
...

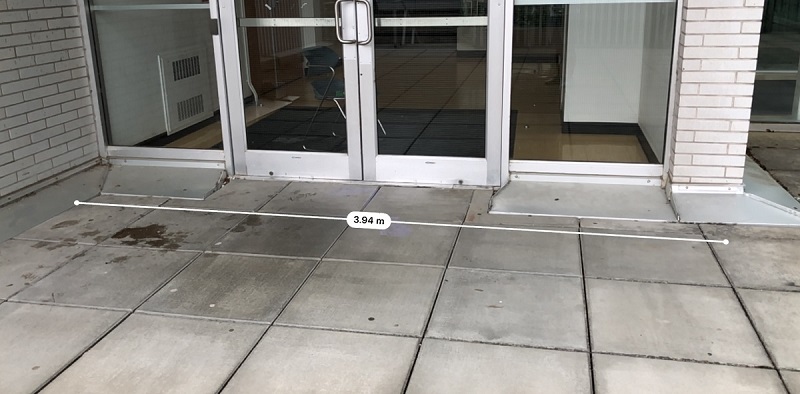

The entrance width is 4 blocks in total with 2 blocks for the door
...

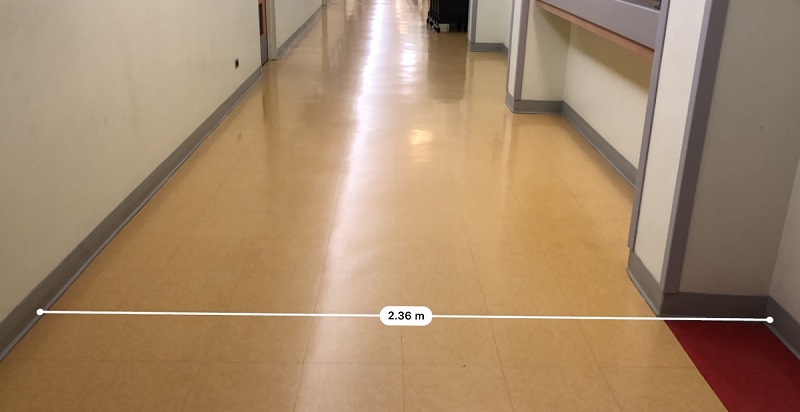

Hallways are only 2.36 meters wide: this creates complications
...
Interior ceiling height is 2½ to 3 blocks high

Images as Reference

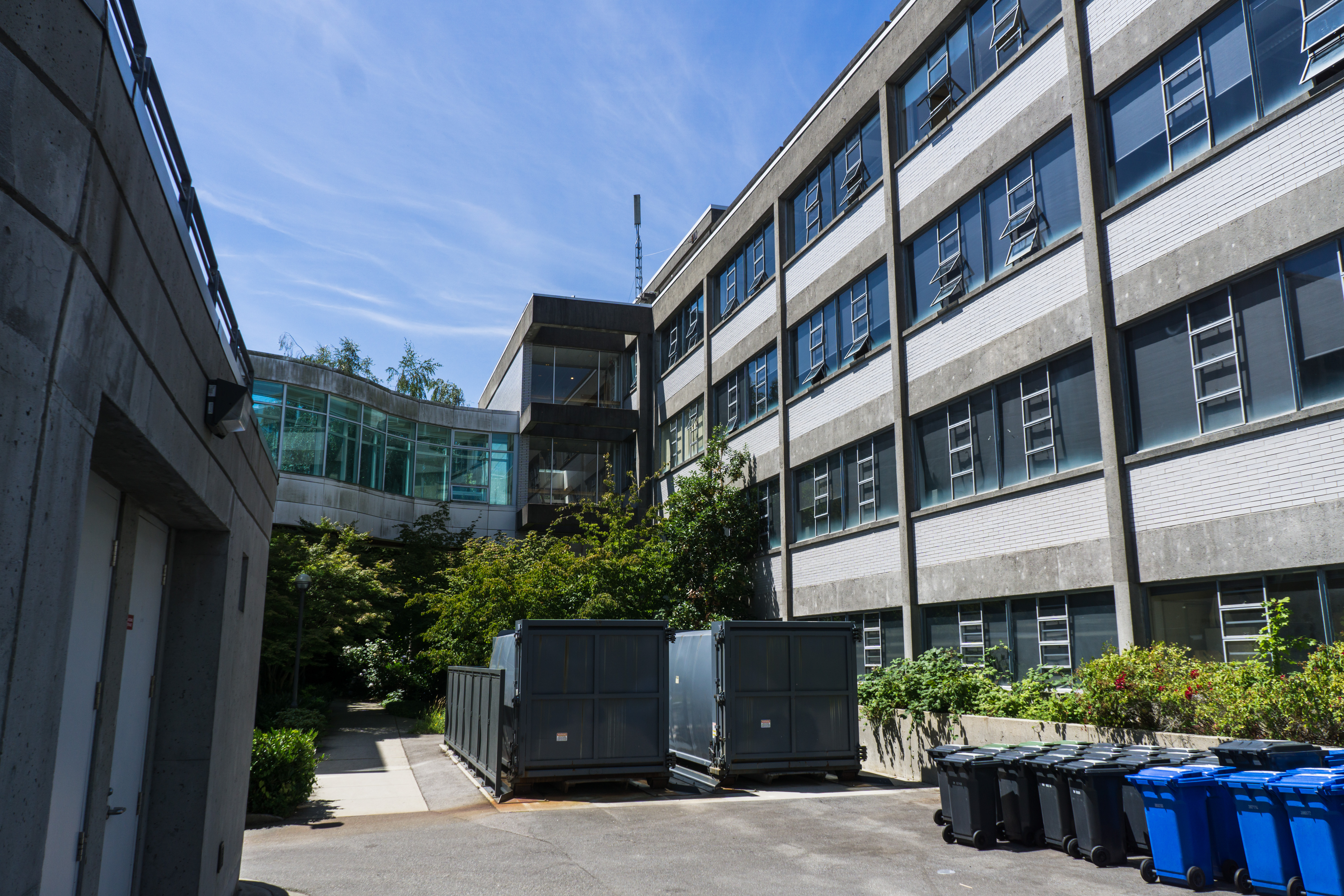

Furthermore, for landscaping features, I used my camera to make visual references relative to the “window columns/pillars grid system”. Lastly, I took a couple hundred more photos all around and inside the building for visual reference, so that I can use the right material in Minecraft to make it looking as close to the real thing as possible.

...

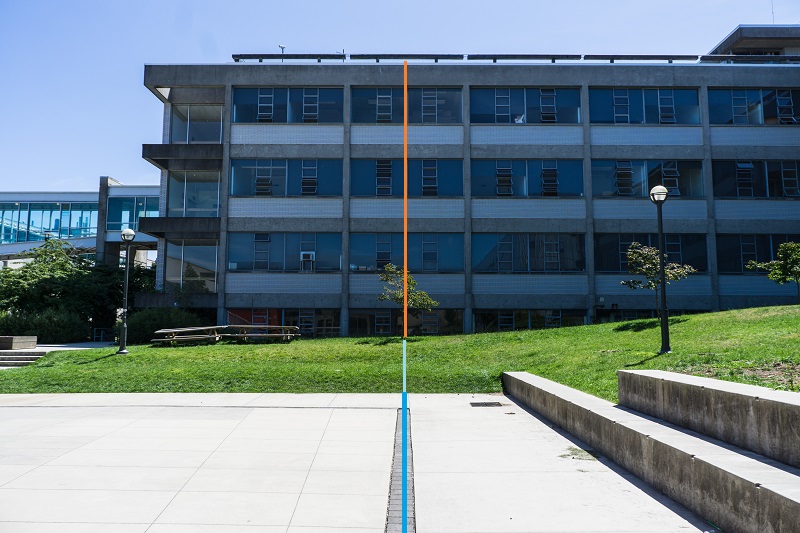

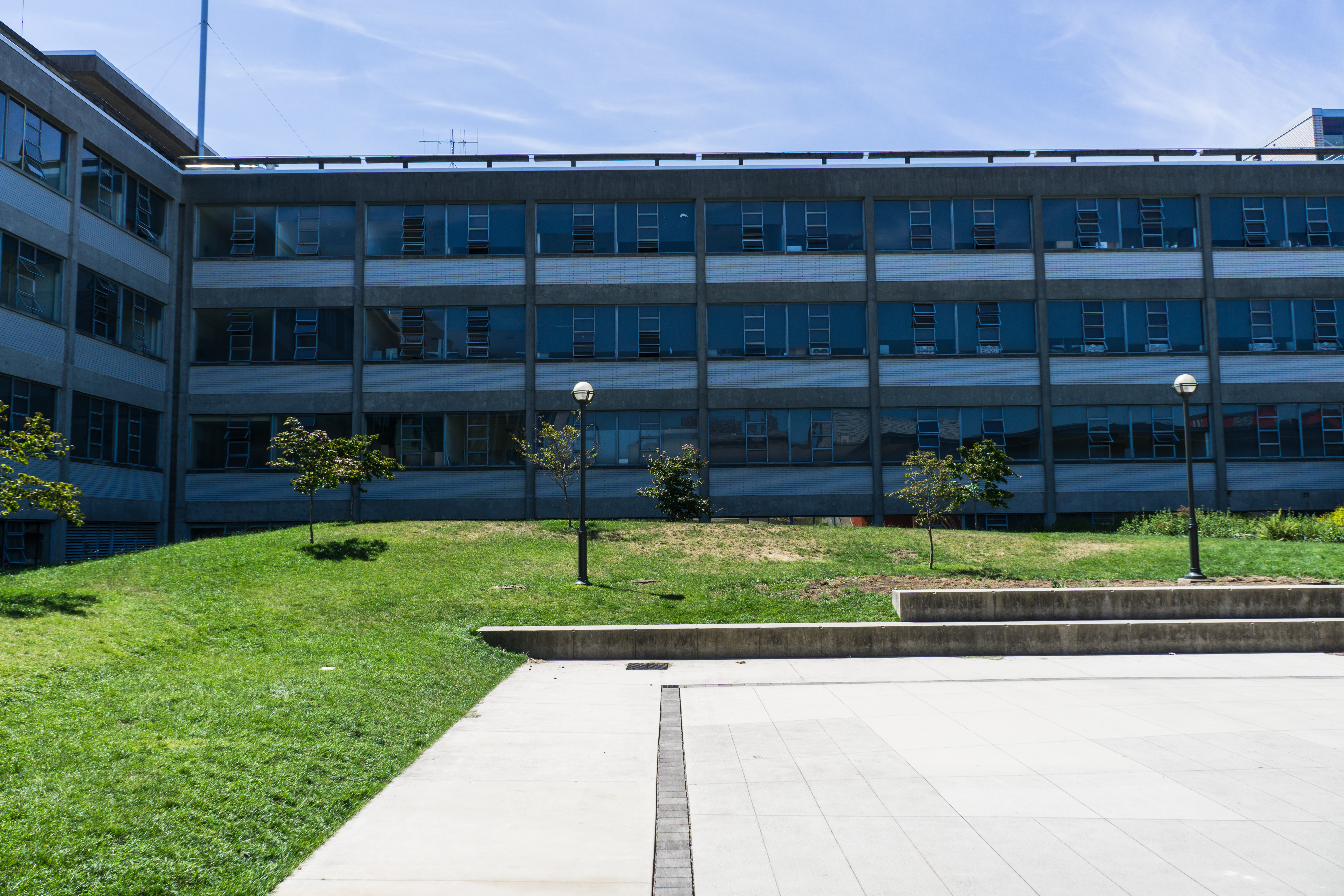

Aligning one of the lines on at the courtyard to the center between two columns

Building

I started by experimenting with different materials for the walls, as that is what we see 90% of the time. The Macleod exterior is a mix of glass, white bricks, and concrete. In Minecraft, I substituted concrete with stone, white bricks with polished diorite. Unfortunately, there isn’t any white bricks material (Mojang, please add). I chose white concrete for the interior walls for the clean look.

For the floors and stairs, I chose stone and sandstone so that it matches the real colors better. In the real Macleod, the ceiling is made of tiles, so I chose smooth stone slabs.

...
Building the walls to match the reference
...
Experimenting with materials for the floors and interior walls
...

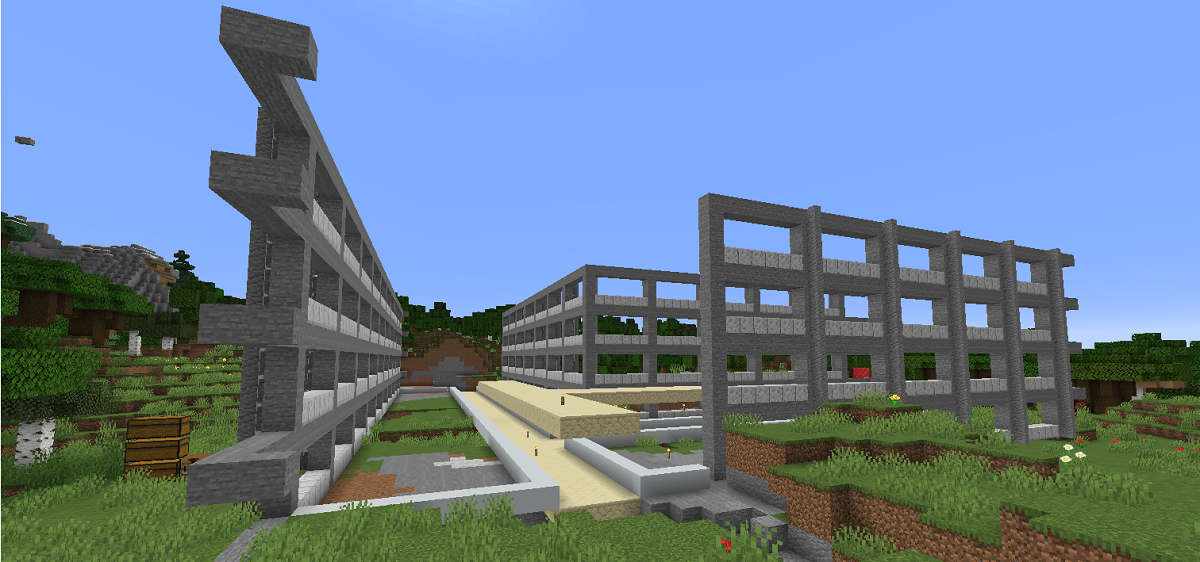

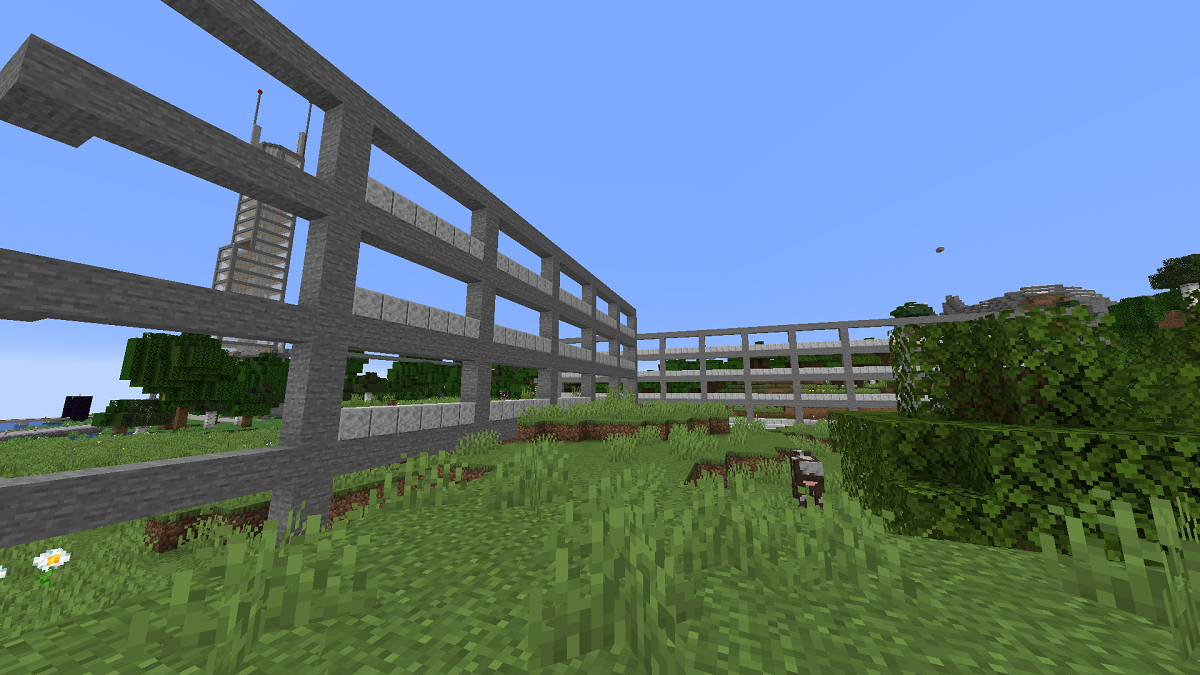

Most of the walls completed
...
Stairwell construction
...
From the 4th rooms
...

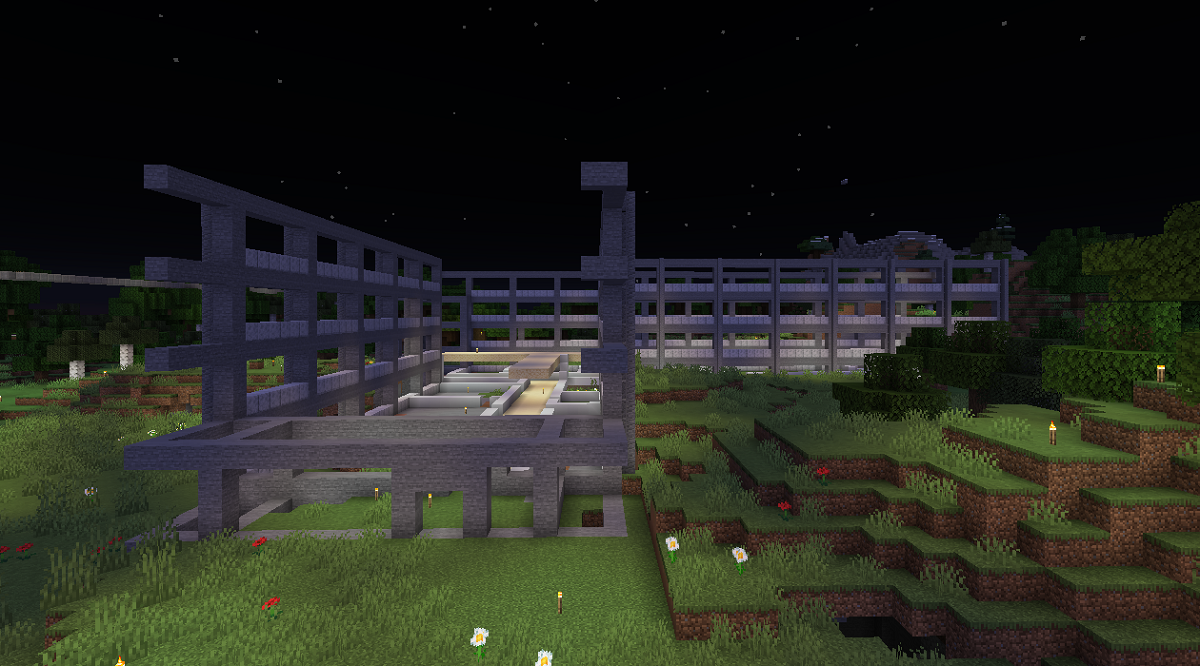

Interior under construction
...

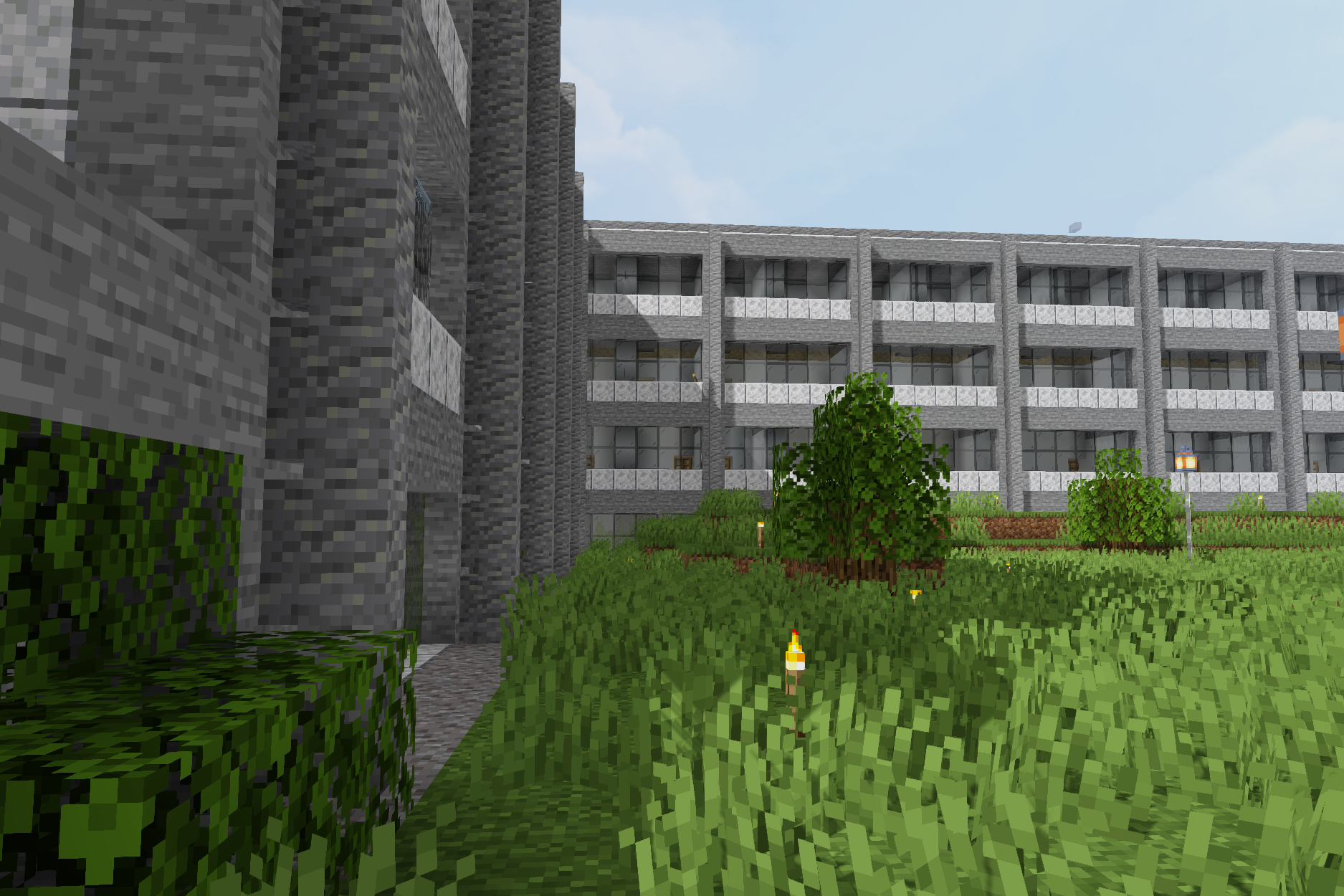

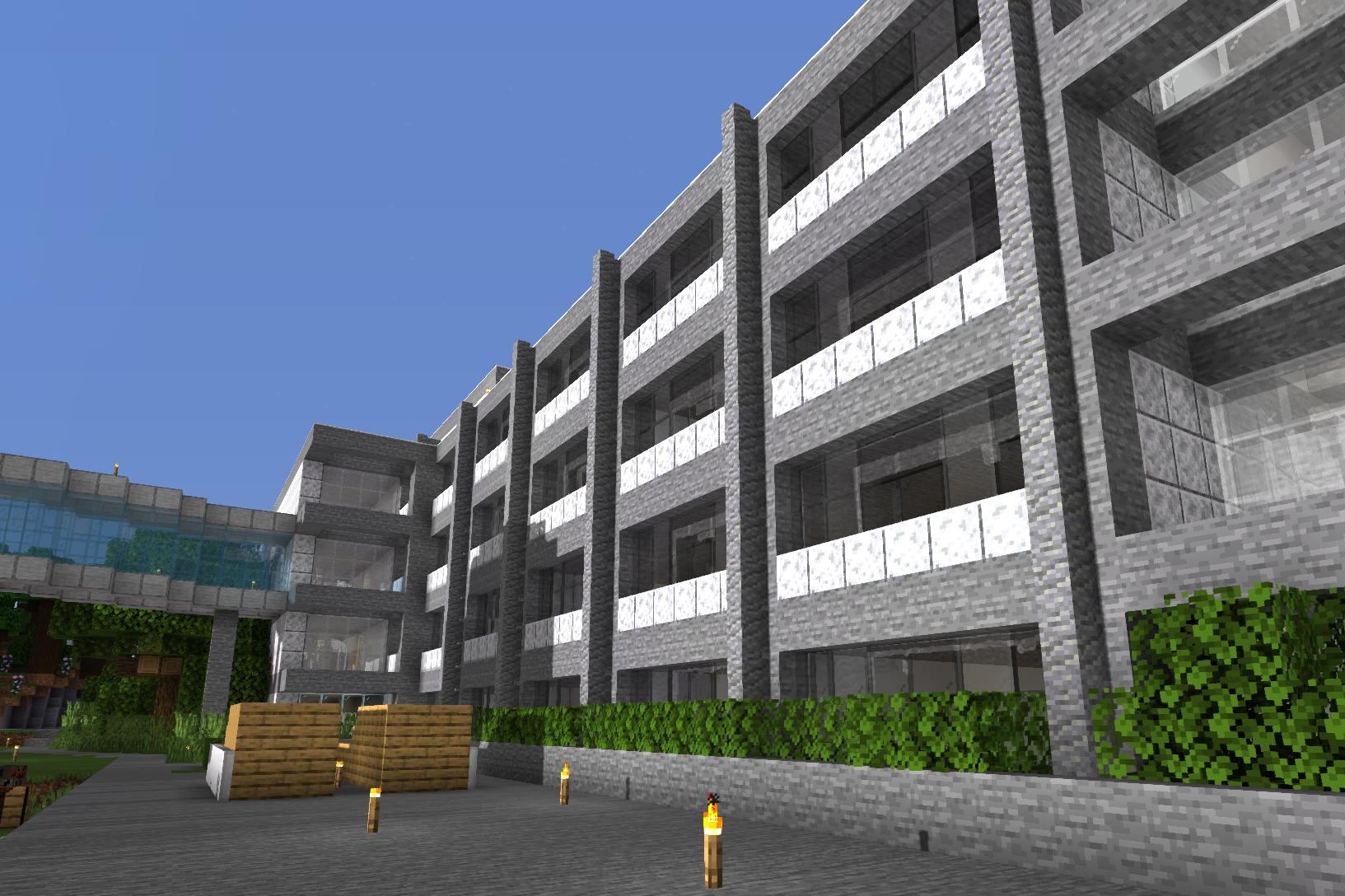

Exerior mostly completed
...
A view of the south entrace (connecting with ICICS)

Limitations

Due to the limited build resolution in Minecraft, a lot of places feels cramped and small. It’s difficult to feel the scale of things. As mentioned before, some compromises had to be made and certain details cannot be reproduced without scaling up the build.

For example, the study rooms on third and forth floors are usually 3 meters wide, but because we cannot place half block vertically or have any wall thickness less than 1 block in Minecraft. The result is that study rooms are 1 block or 2 blocks wide.

Another example is the hallway, as shown from the measurements above, the hallways are max. 2.5 meters wide. If we round down to 2 blocks, then the hallways would look to narrow, if we round up to 3 blocks, then the double doors at the end of the hallway would be asymmetrical. So I ended up using 4 blocks, almost doubling the width of the hallway but I think it looks nicer.

...

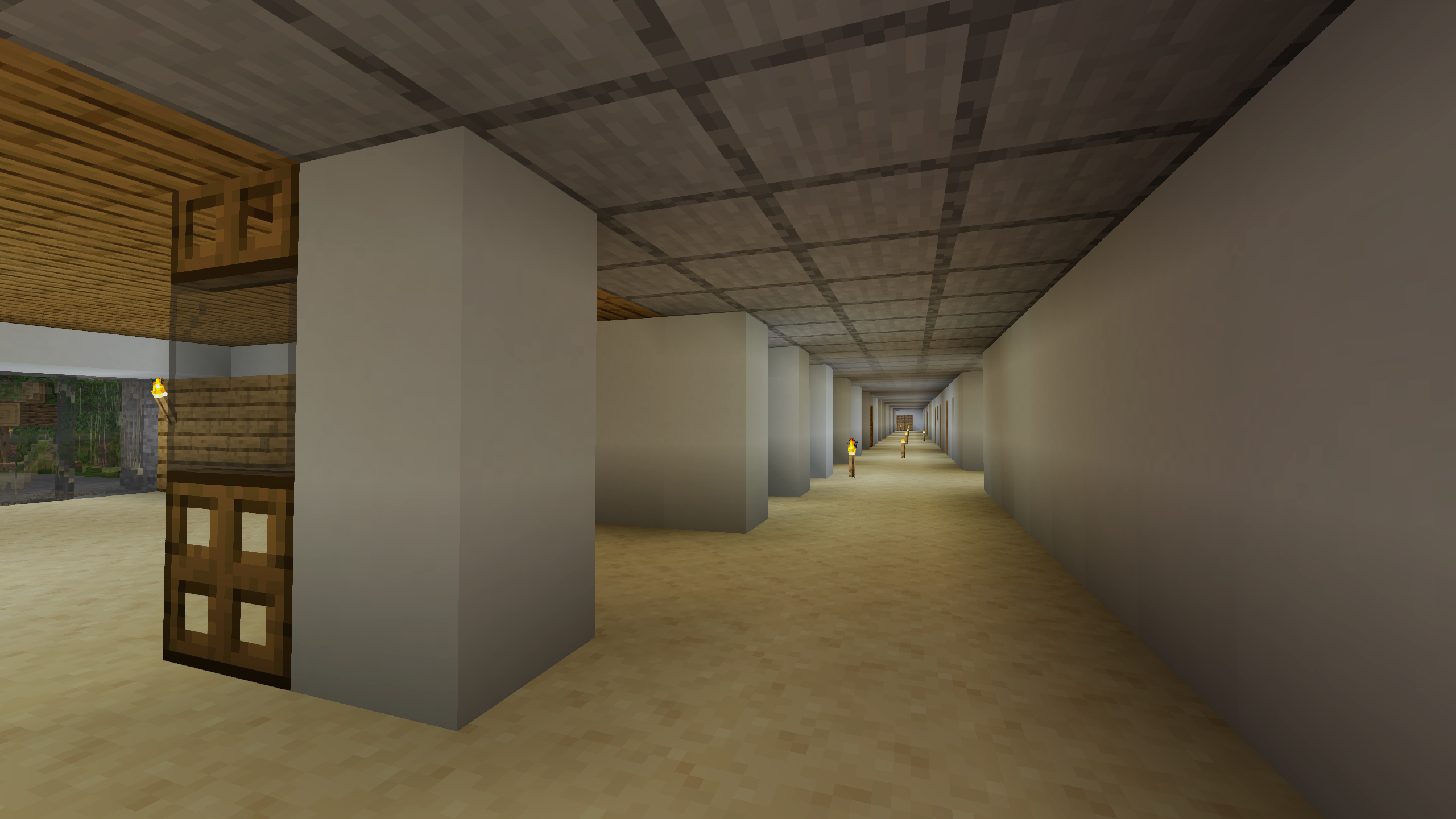

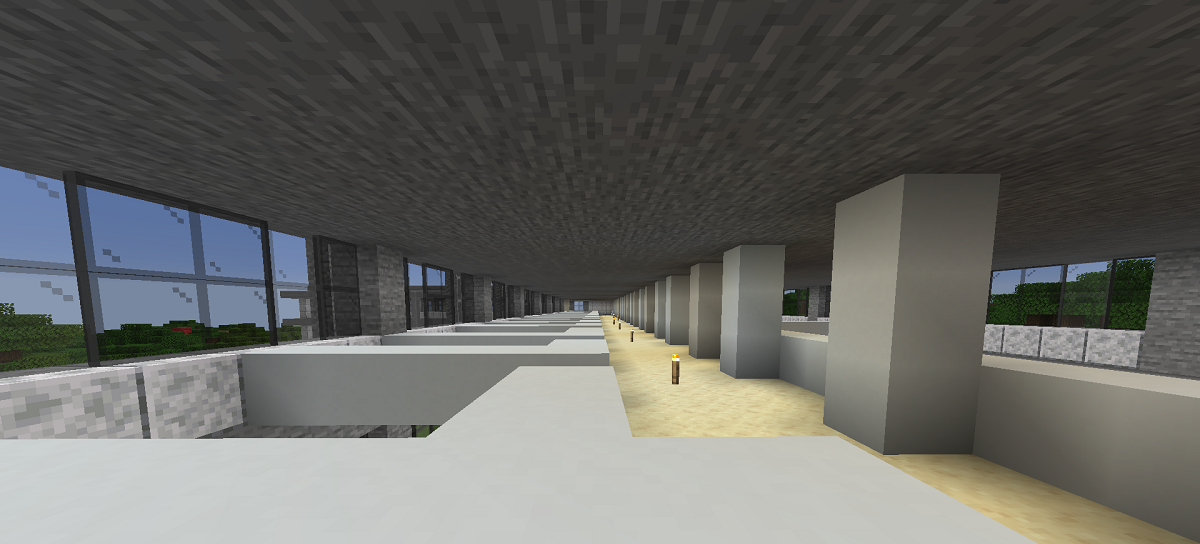

Hallways are made to 4 blocks wide

Landscaping

For the exterior and landscaping, I opted for some large oak trees and they seem to work pretty well. I had to create some custom trees due to their non-standard size and shape. The large tree in the front entrance was custom built because it was tall but skinny. The saplings at the north side of the building were small, but not small enough to use Minecraft saplings; plus Minecraft saplings would grow into large trees.

...
Decorating the exterior with vegetation

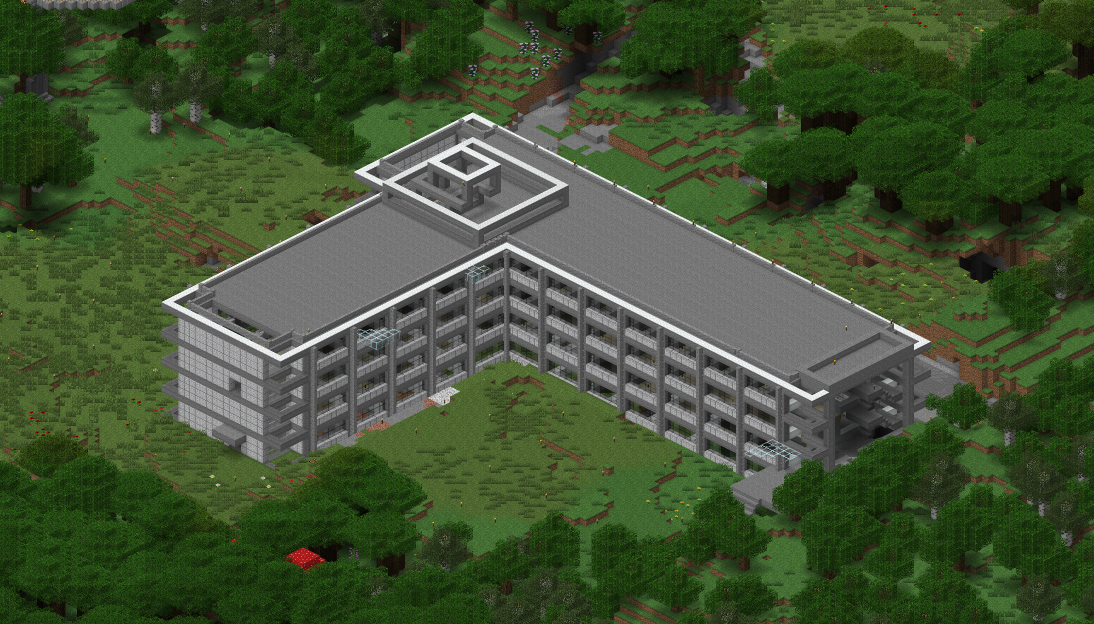

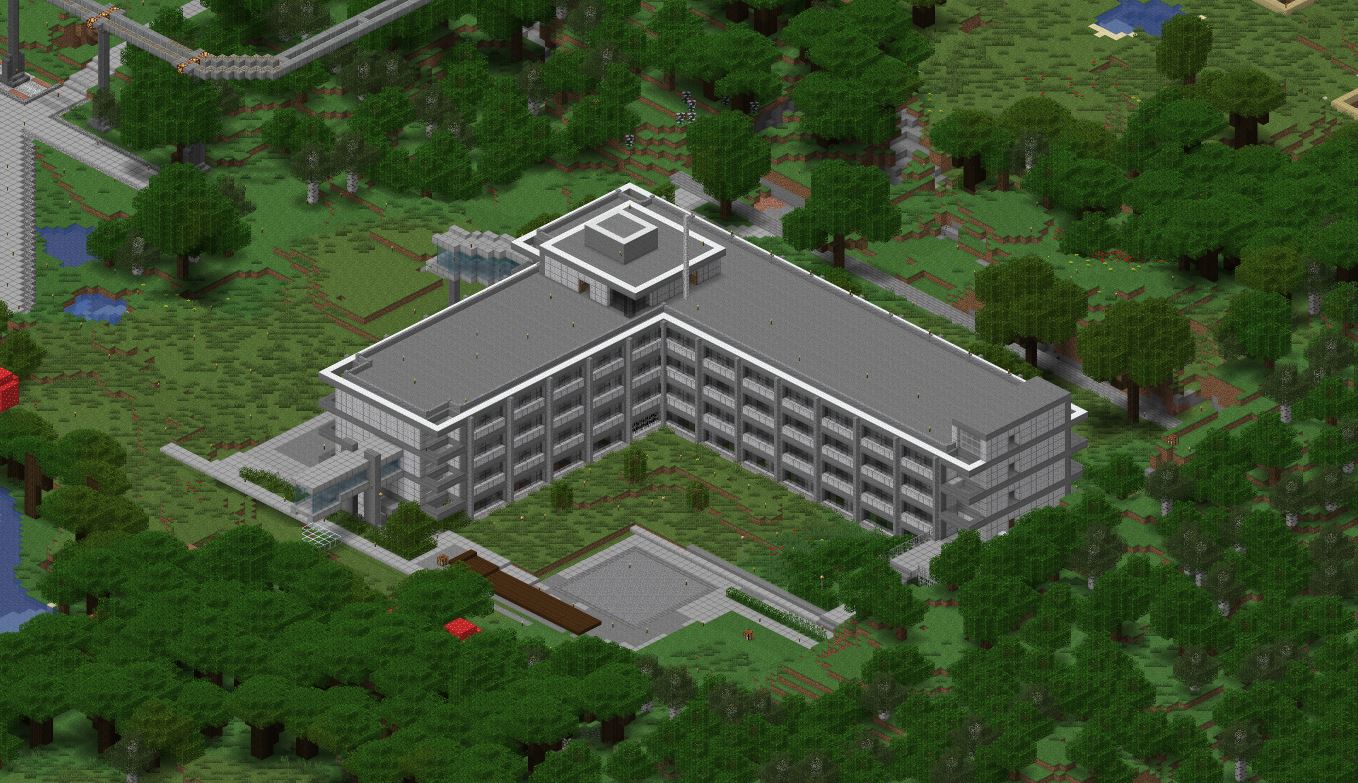

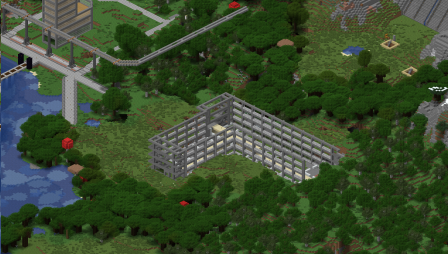

Overall the build took about 12 hours accumulated over the span of 3 weeks, and not including the survival aspects such as resource gathering. All the walls and doors have been laid out corresponding to the floor plans but interior decoration and furnishing is still work-in-progress. Below is a progression of the build as seen from the server dynmap.

...
...
...

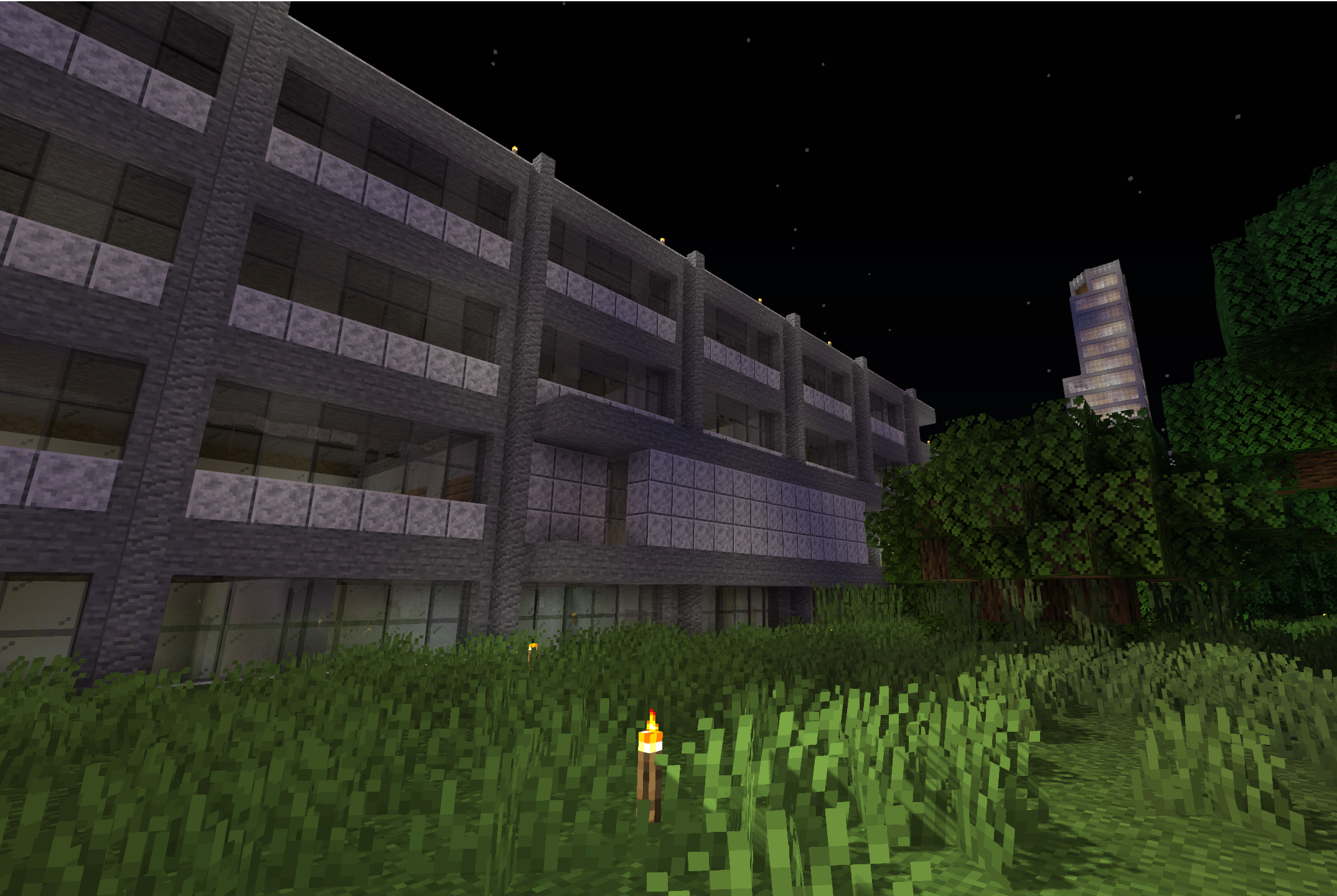

Here are a few HD screenshots using Sonic Ether’s Unbelievable Shaders3 during rain to perfectly capture the realistic atmosphere of being around the Macleod building:

...

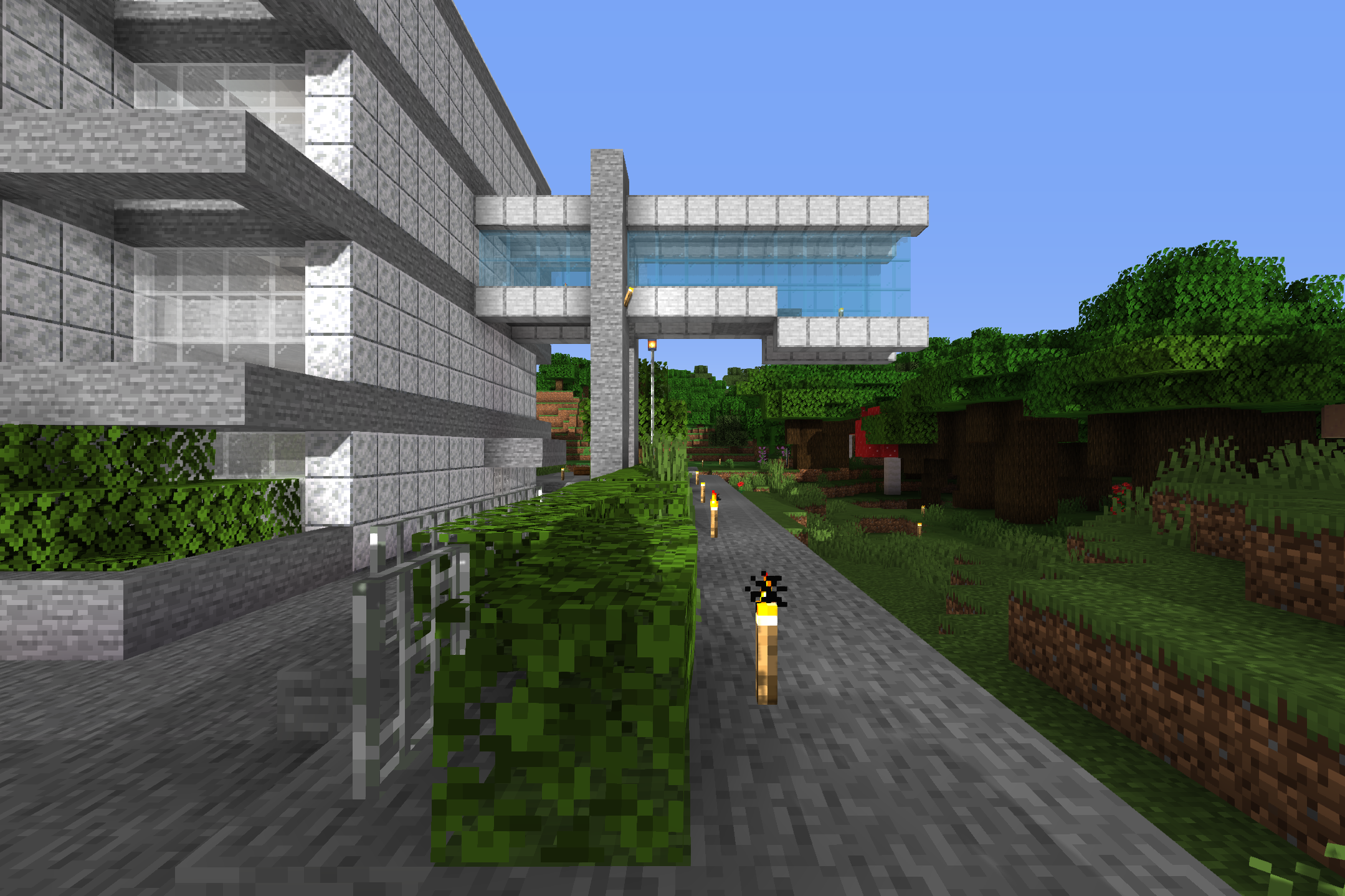

As seen from Main Mall
...
Main entrance
...
As seen from Engineering Student Center yard
...

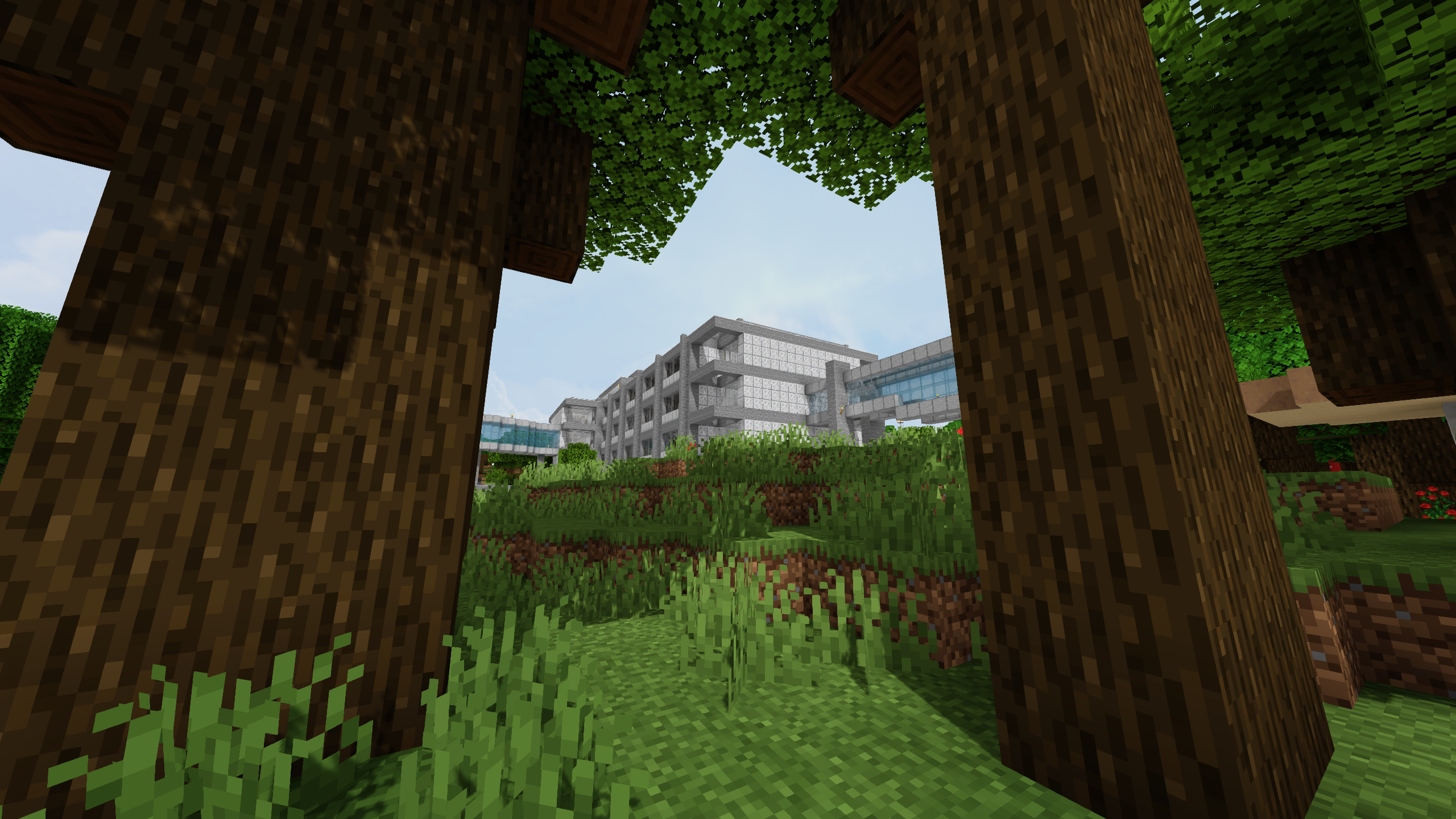

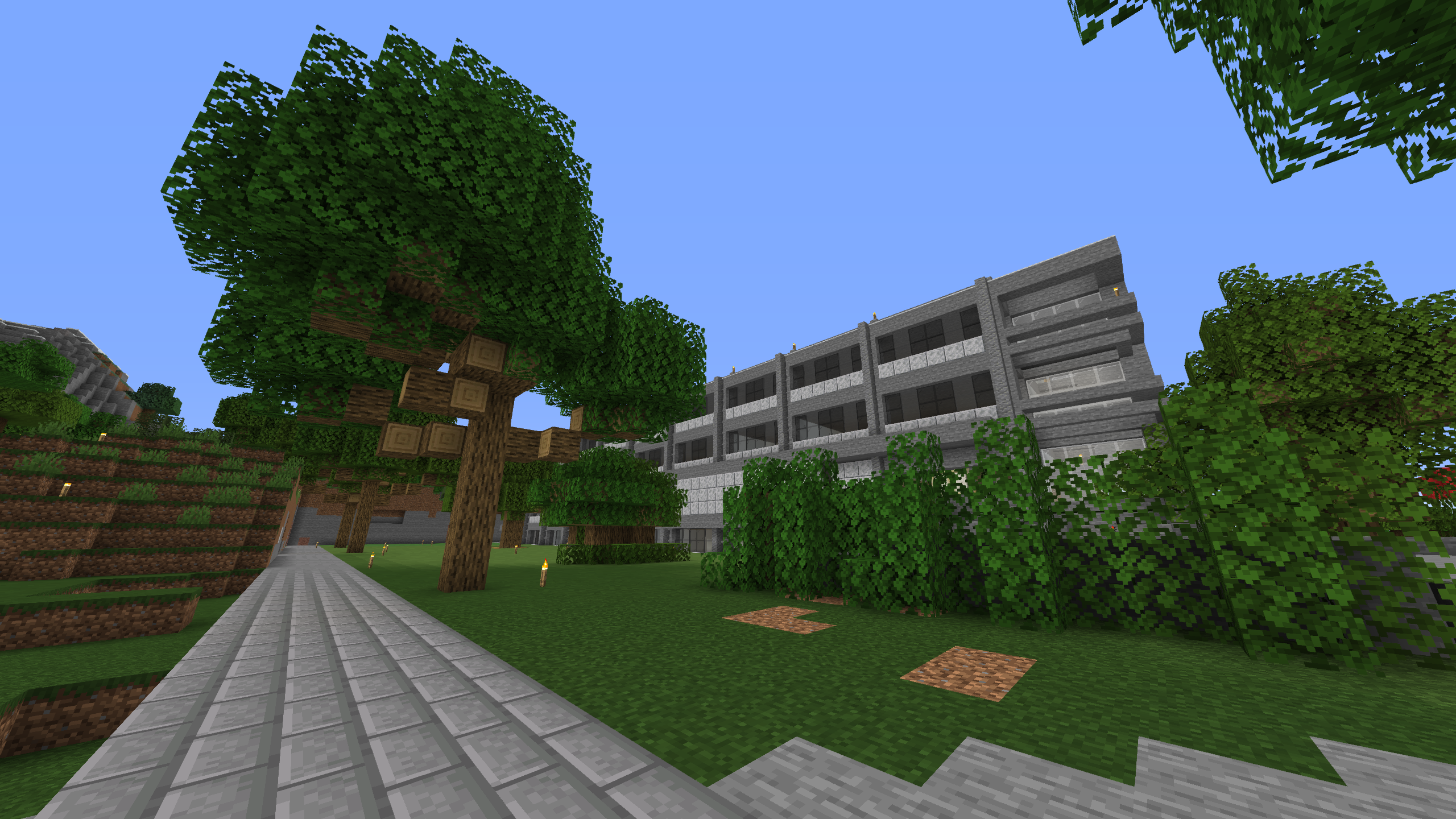

From the forest

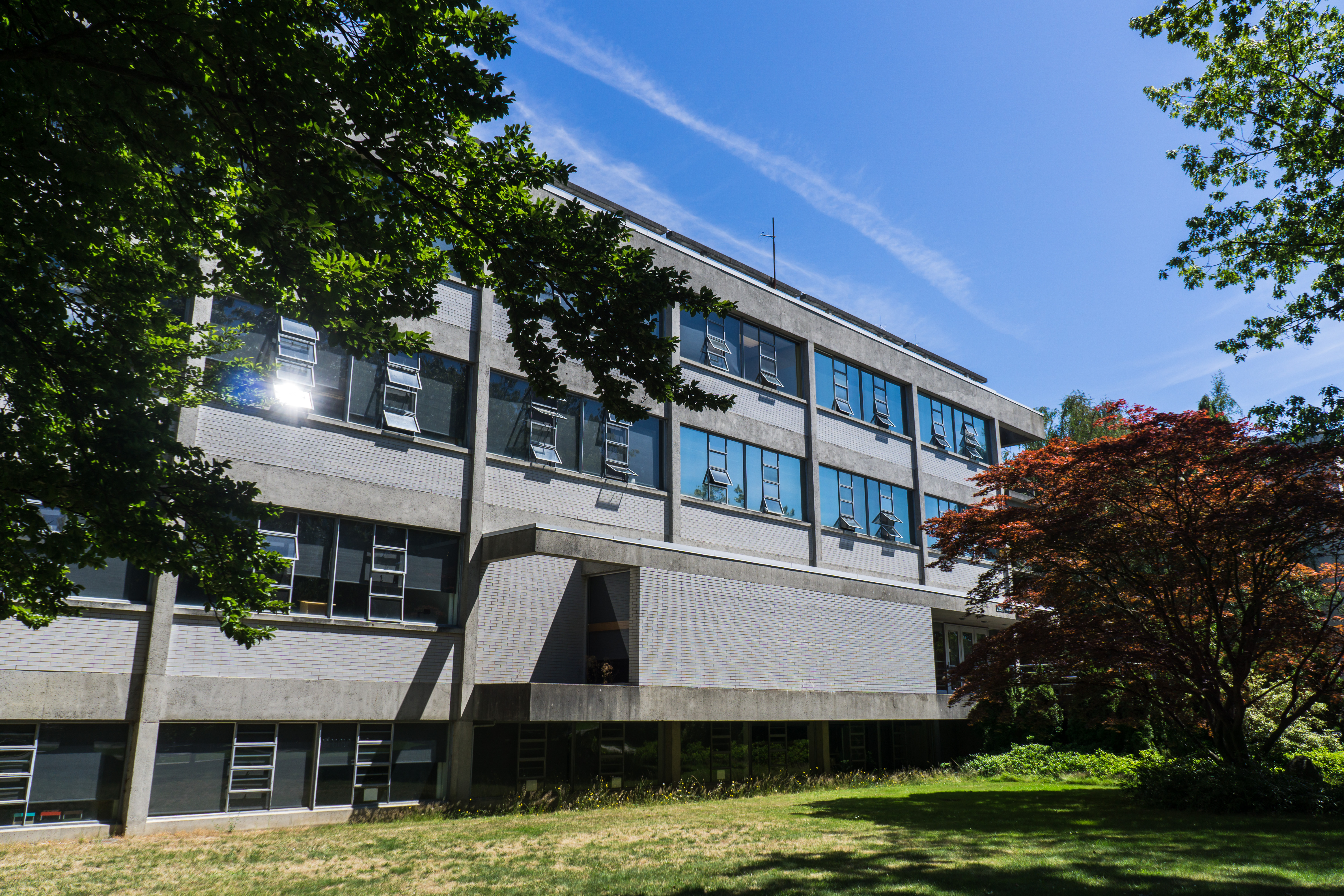

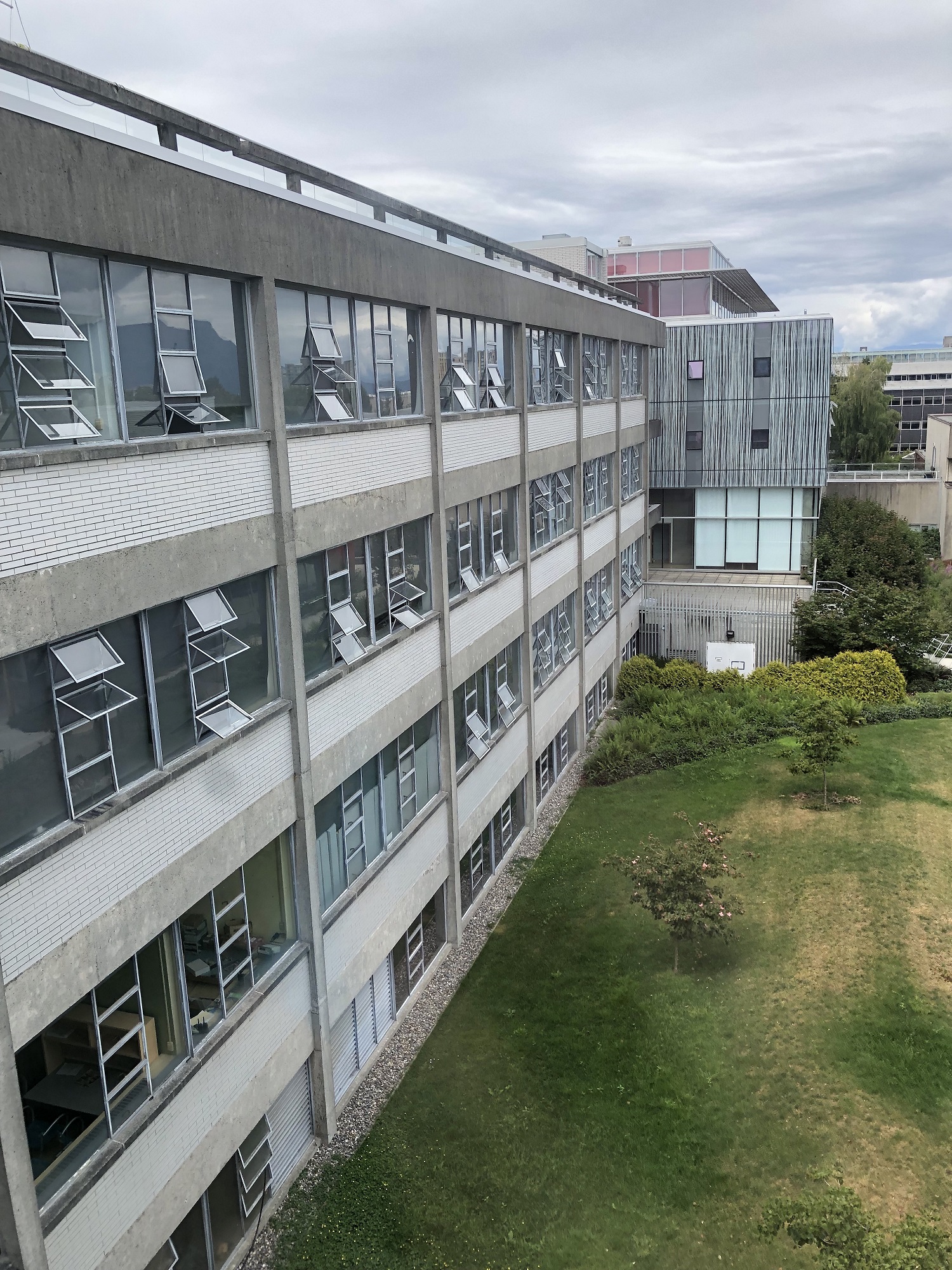

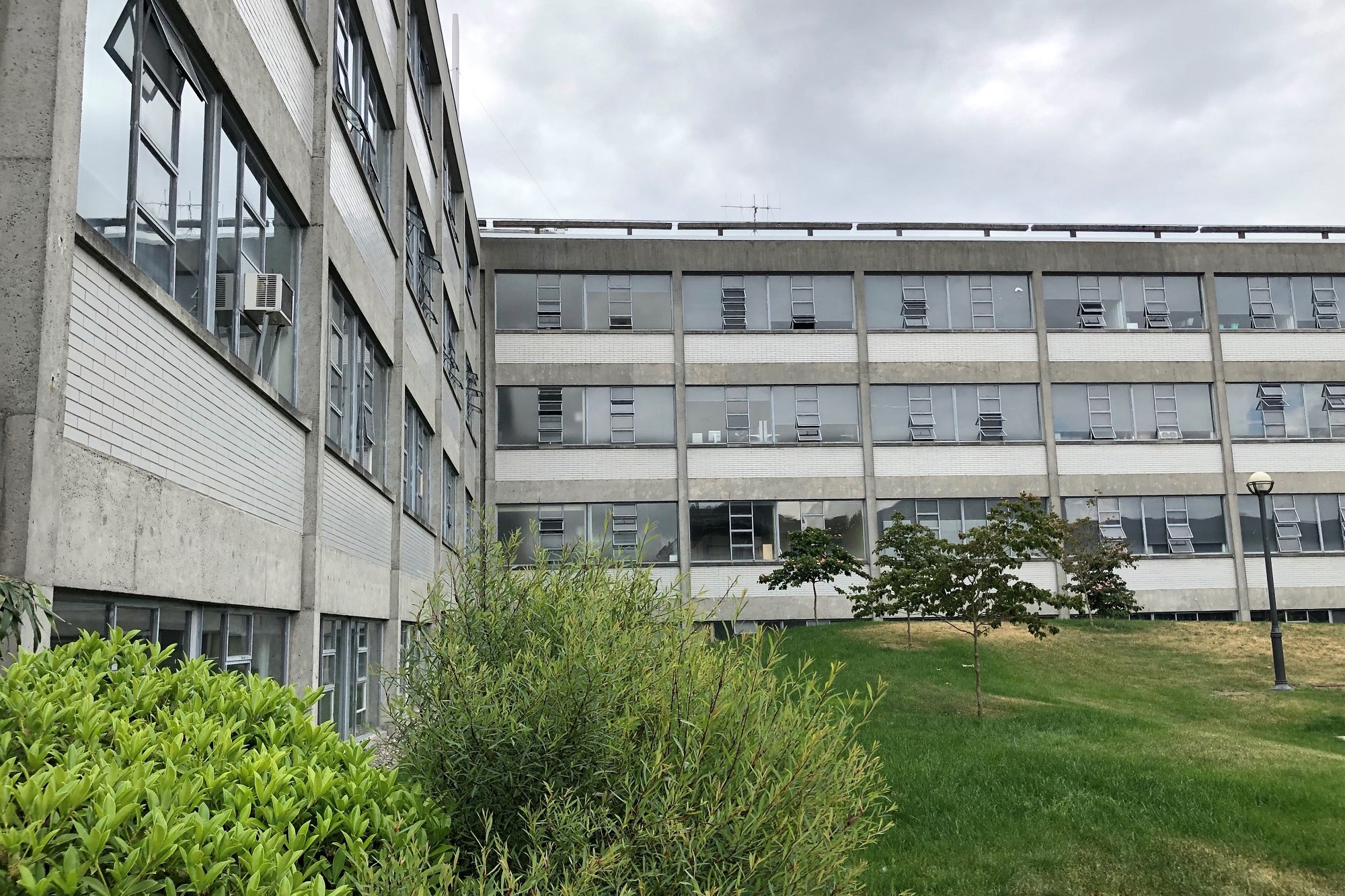

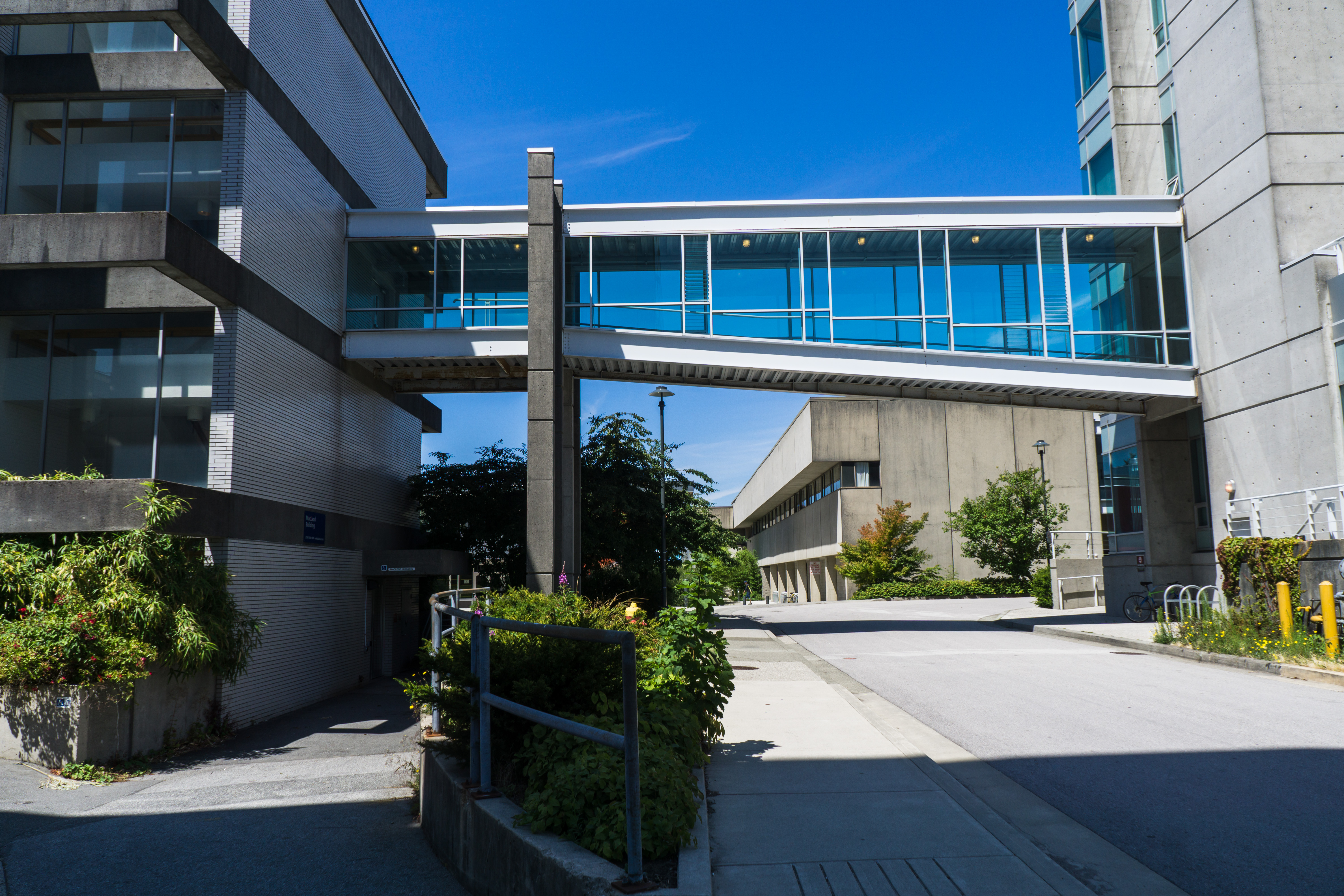

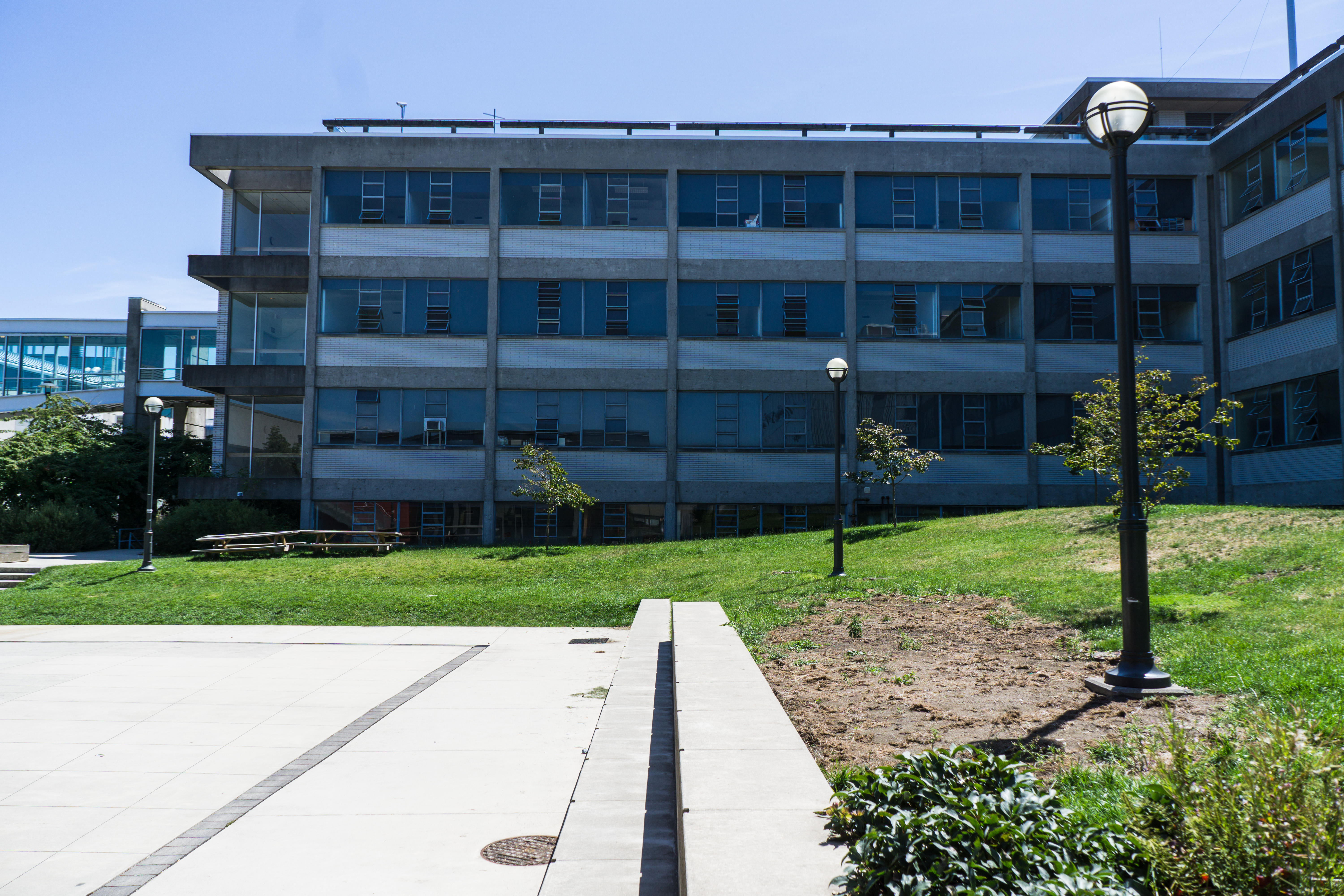

Here are some comparison pictures between the real life Macleod building and the Minecraft build:

...
...
...
...
...
...
...
...
...
...
...
...
...
...

Thanks for reading!
